Wedge Wire Screen Support Grids is a flat screen panel that provides uniform flow collection which is essential in many applications.
This is particularly important when screens are used to reserve expensive ion exchange resins.
Support grids provide superior media retention characteristics in vessels of all types.
They feature durable construction, precise open area, and are virtually non-clogging.

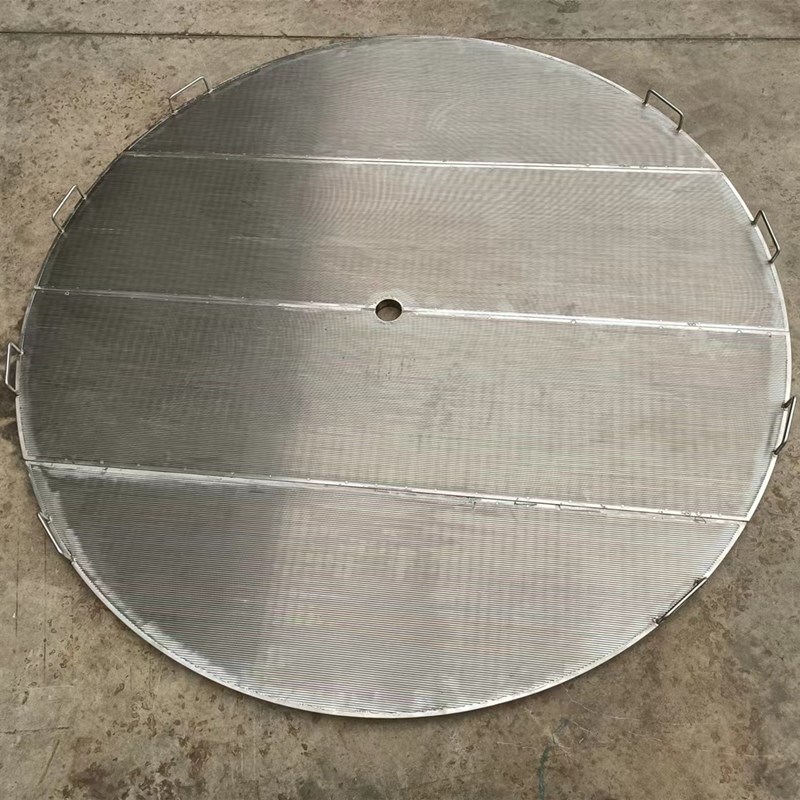

For larger vessel diameters the screen support grids are fabricated in segments to allow installation through a vessel man-way.
Wedge Wire Screen Support Grids Application:
The continuous slot formed by V-shaped surface wires ensures a two-point contact between the particles and the slot to minimize clogging.
The wedge wire screen support grids are very important to provide uniform flow collection
They are widely used in the carbon filters, molecular sieves. steel structure platforms, stair treads, sidewalks, drainages and well covers etc.
We can design and manufacture standard steel grating and in customized shapes per client’s requirements steel structure platforms, stair treads, sidewalks, drainage and well covers etc.
Wedge Wire Screen Support Grids Arrangement & Installation:

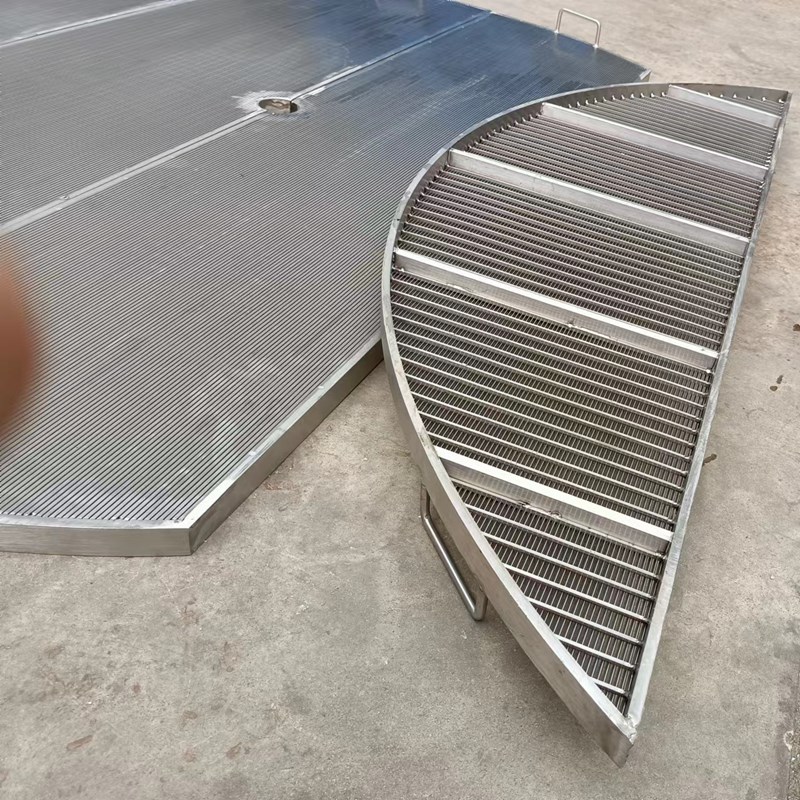

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one.
The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.
The Wedge Wire Screen support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.
