wedge wire mesh

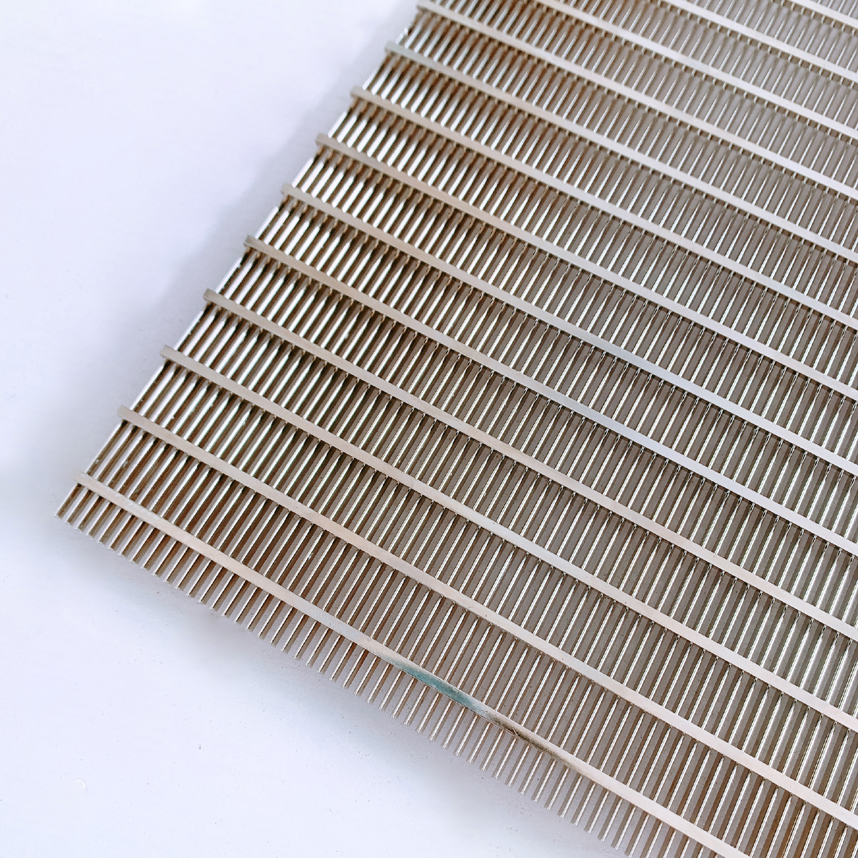

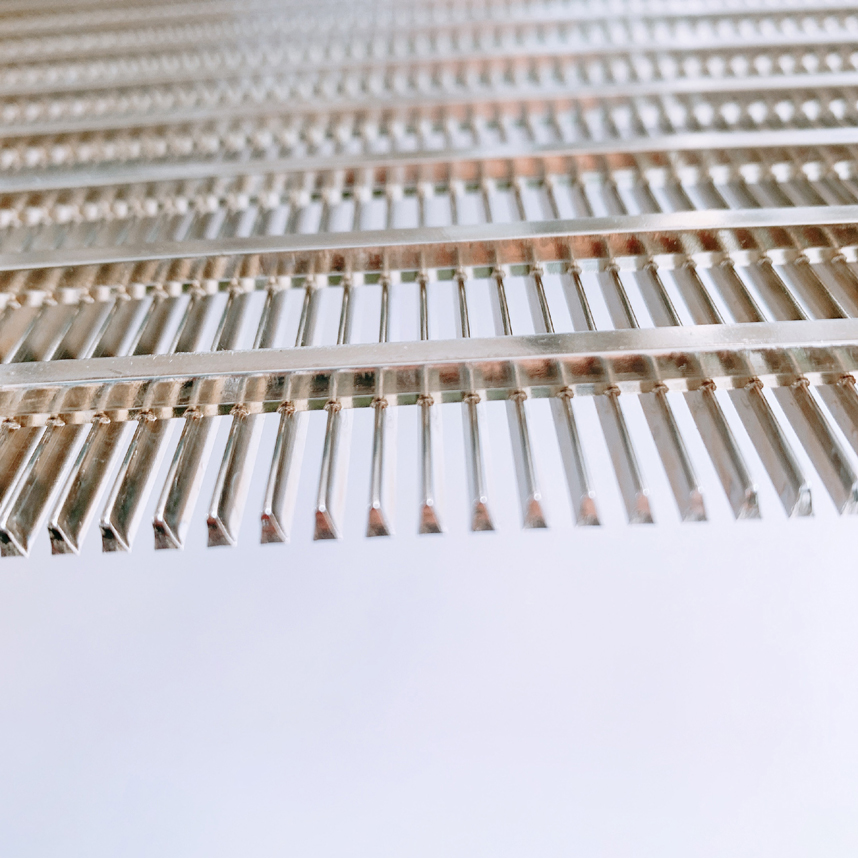

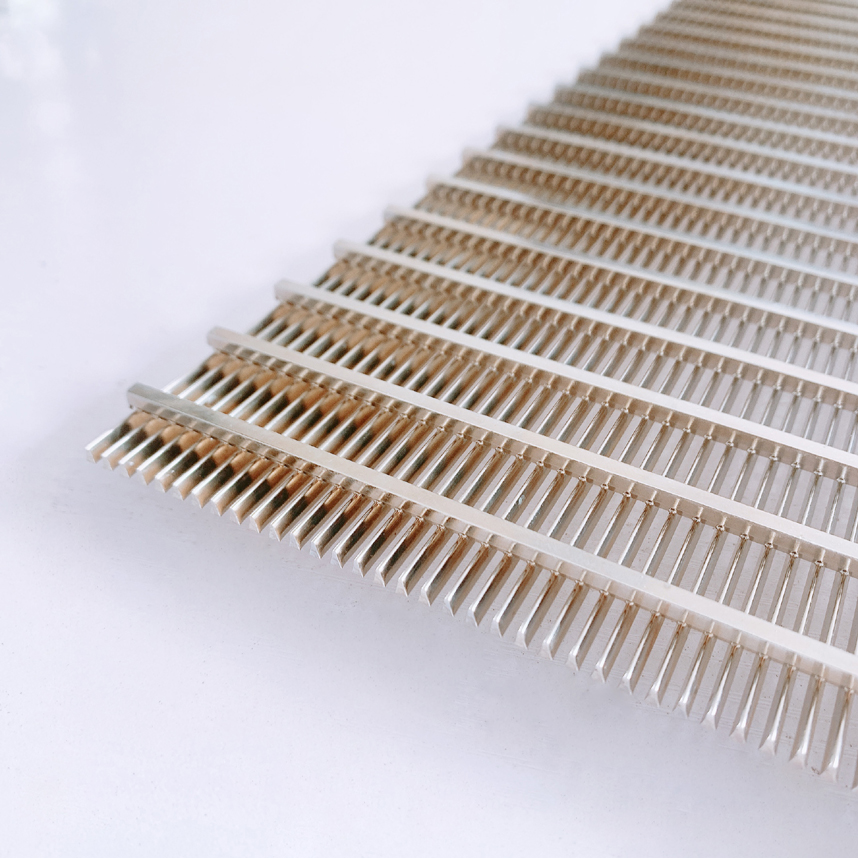

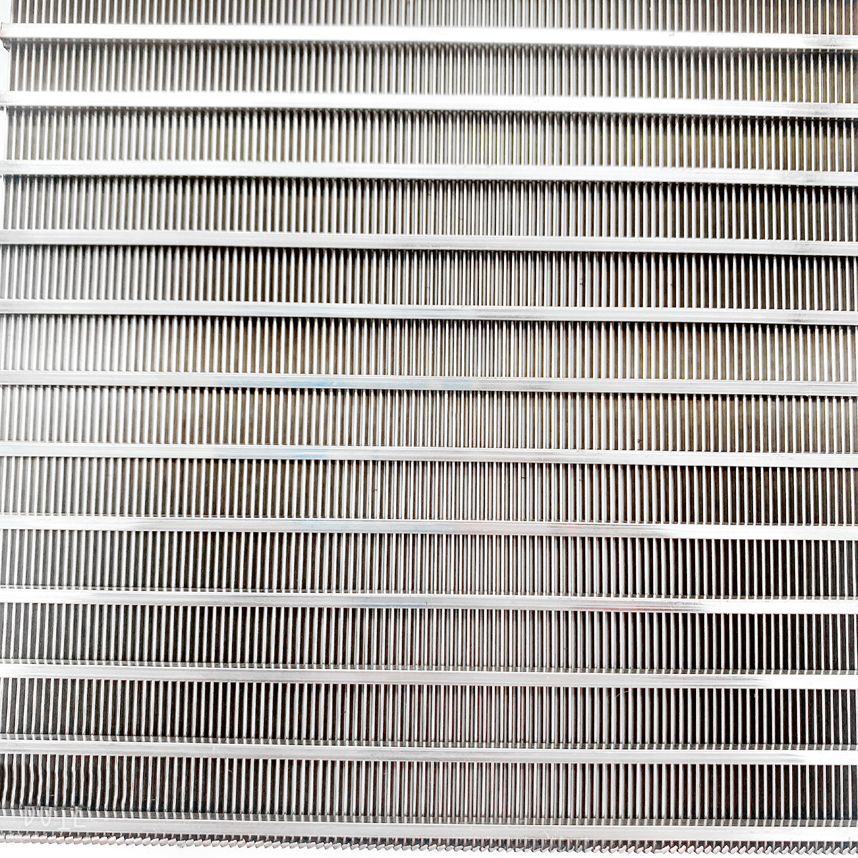

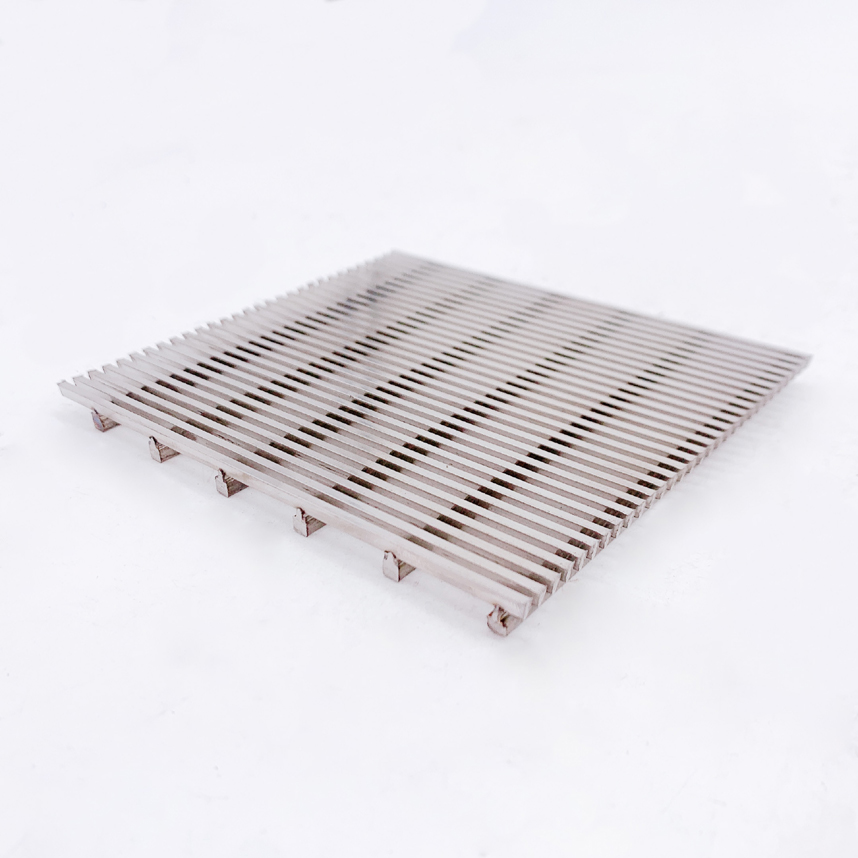

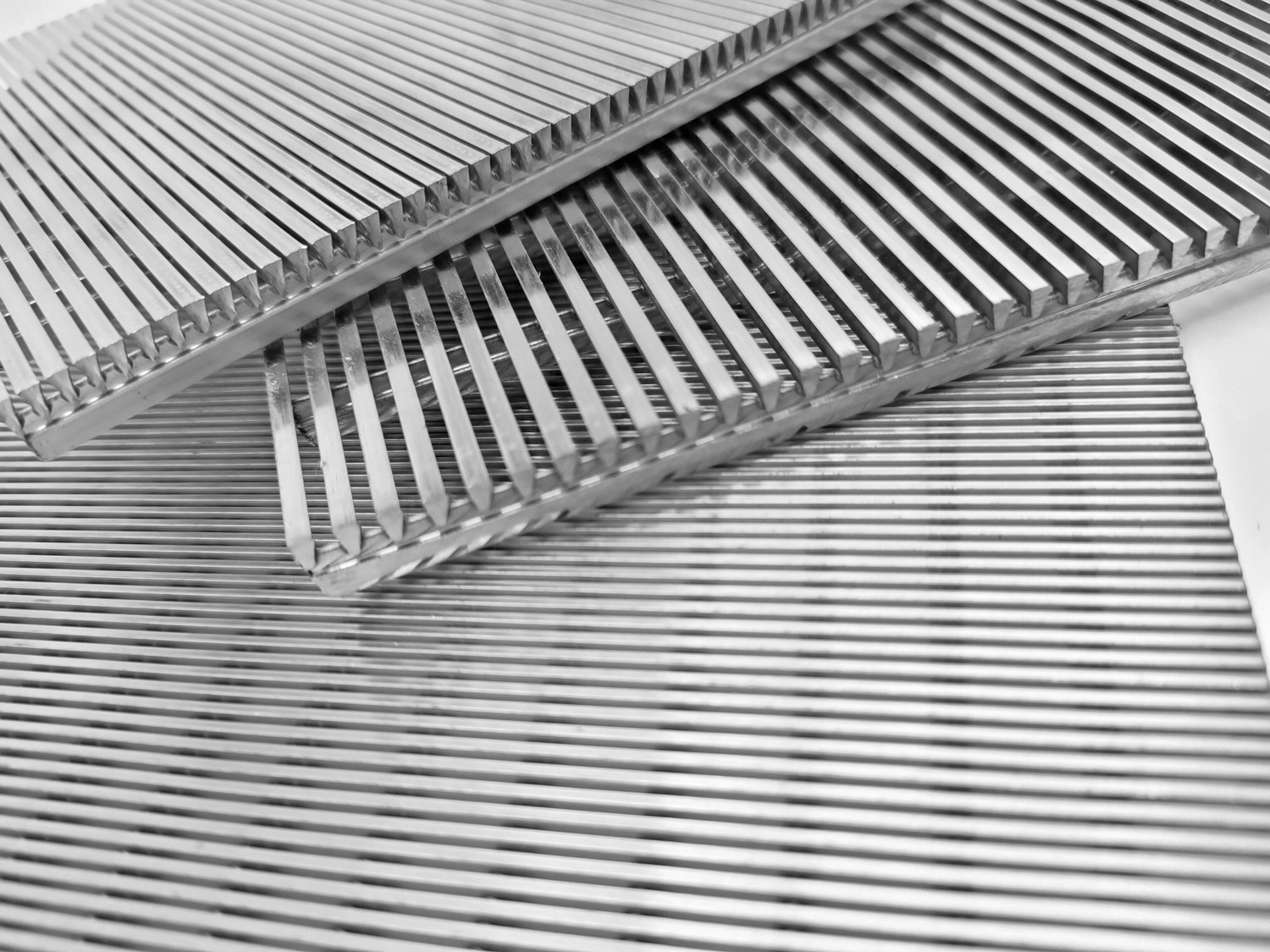

Wedge Wire Screen Panel is the welded structure. It consists of wedge wires resistance welded onto support rods. wedge wire filter can providing more open area, these non plugging well screens have a tight slot tolerance.The specific continuous slot construction aims to optimize flow rates, minimize clogging. Each wedge wire filter product is custom designed to suit the specific requirements of the customer.

Support types of wedge wire screen panels

Specifications of wedge wire screen panels

-- Material: stainless steel, or as per your requirement

-- Surface profile type: triangle wire.

-- Support profile type: round bar, rectangular bar, wedge wire, triangle wire.

-- Slot size: 0.05 mm - 10 mm.

-- Pitch: 10 mm - 35 mm.

-- Panel width: 500 mm - 2000 mm.

-- Panel length: 500 mm - 3000 mm.

Advantages of wedge wire screen panels

-- Flat surface.

-- Excellent filtering performance.

-- Accurate distance between supporting profile.

-- Welded production process for solid and strong structure.

-- Good mechanical properties.

-- High strength.

-- High load capacity.

-- Corrosion and rust resistance.

-- Temperature resistance.

-- Chemical stability.

Applications of wedge wire screen panels

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:

Vibrating screen decking.

Surface water intake screens.

Fish diversion screen panels.

Hatchery screens.

Grain drying screen.

Malt kin or germination floors.

Decorative materials.
