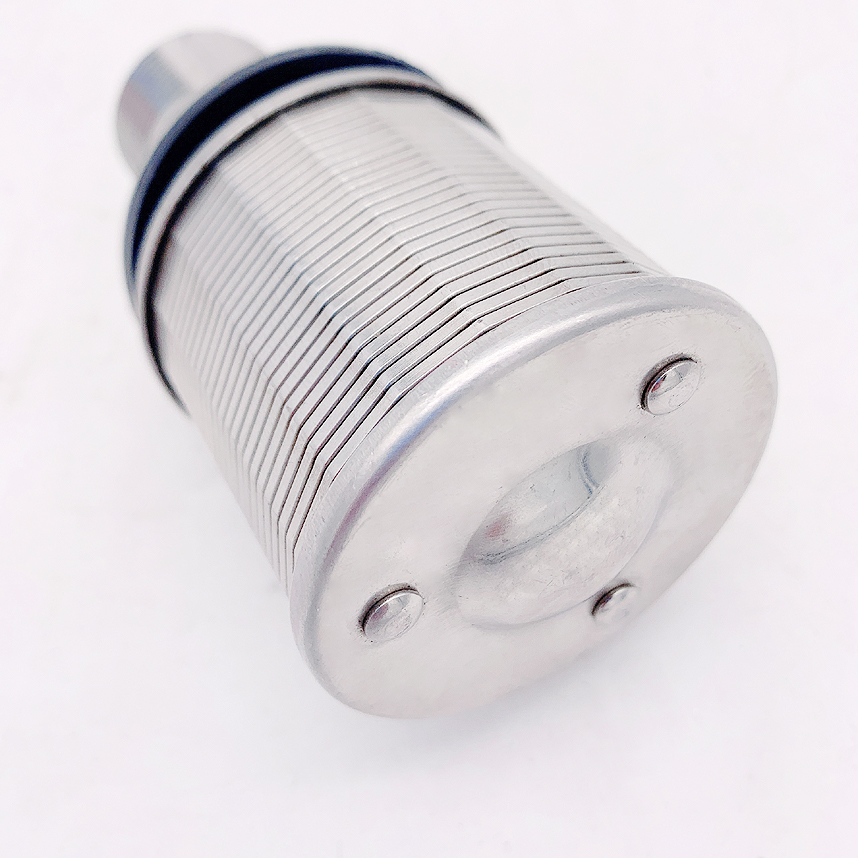

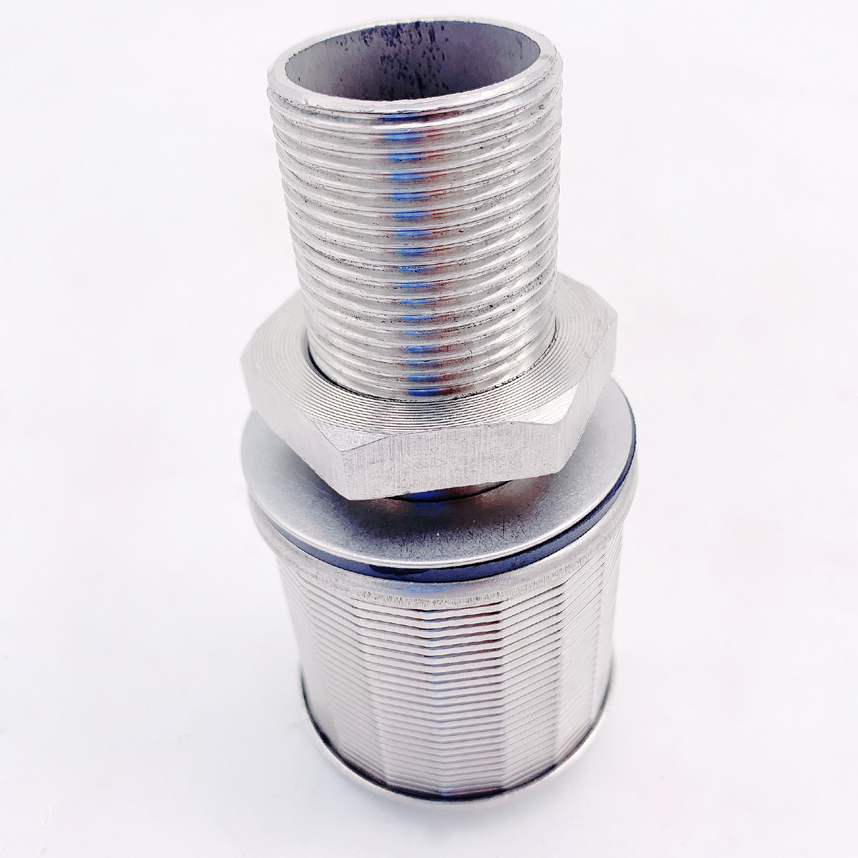

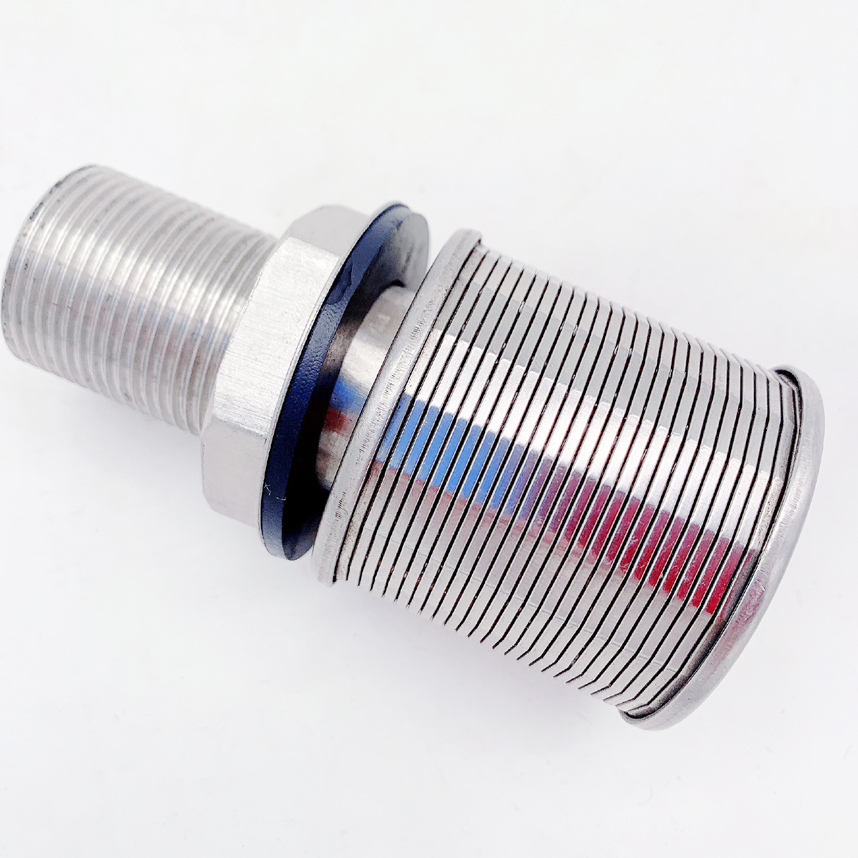

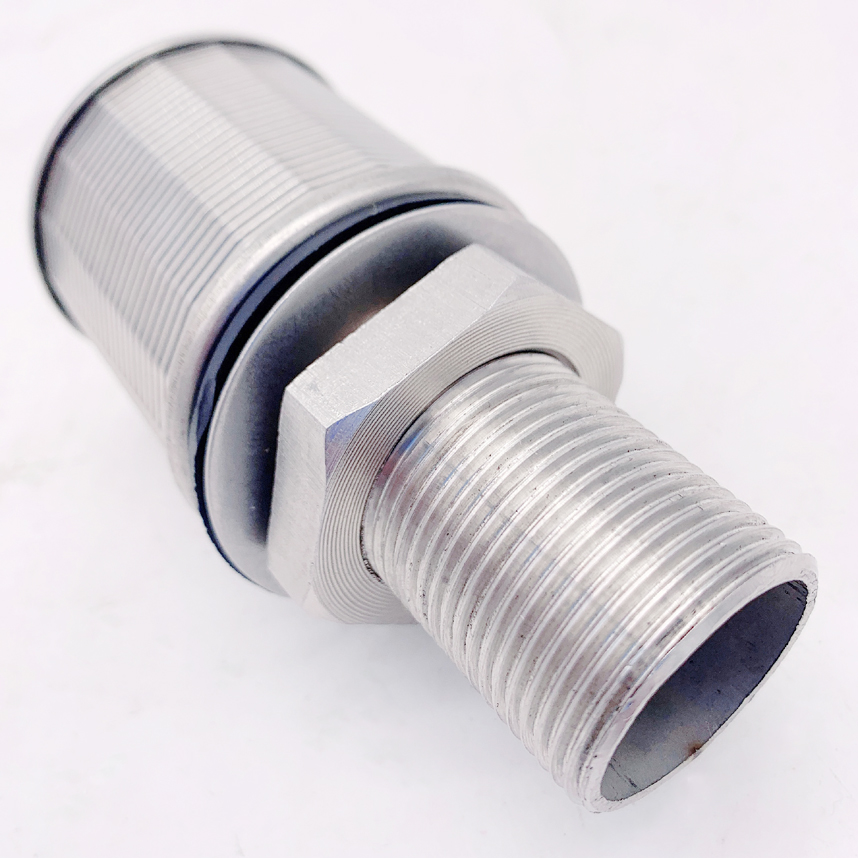

Stainless Steel 316L Double Thread Couplings Strainer Johnson Slot Screen Nozzle
Product Description:
|
Product Name
|
Johnson Water Filter Nozzle
|
|
Material
|
Stainless Steel
|
|
Grade
|
316L
|
|
Slot size
|
0.2mm
|
|
Diameter
|
45 mm
|
|
Screen Length
|
100 mm
|
|
Total Length
|
140 mm
|
|
Thread Size
|
1 " NPT , 24 mm
|
|
Nutsert
|
1 PCS, 2 PCS
|
|
Gasket
|
None
|
Characteristic:
The water screen nozzle is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.
Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.
OEM service:
Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.
Use:
Water screen nozzle is mainly installed in the filter, water filter, oil filter, such as filtering apparatus, is used in the water, oil, gas and resin rosin and medium filtering, can also be used for water treatment, water softening and sea water into fresh water, etc., can also can be used in food chemical and other industries filtration equipment.
Stainless steel wedge - shaped silk water cap, usually with high quality stainless steel 316, 316L and other materials to ensure strong product structure and product bearing capacity.The weight is generally 0.2-1.0kg, the volume weight is small, the appearance is exquisite.
Outer diameter: 20 mm to 50 mm
Gap: 0.05mm-0.5mm error: 0.03mm.
Standard length: 50 ㎜ - 200 ㎜
Joint specification: 4 sub-pipe 12"--- pipe diameter: 12.5mm.
34"- pipe diameter 19mm.
1"-- -pipe diameter 25.4mm, etc.
What is
Filter Nozzle?
Stainless steel filter nozzles are used in liquid/solid separation, and their design and quantity will vary depending on the application and flow requirements.
Our factory provides a wide range of industrial water filter nozzles and lateral distributors for water treatment.
Our products are used in industrial water treatment, water purification, in ions exchange systems and also in water softening filters.
Wedge wire screen Filter Nozzles are used in liquid/solid or gas/solid separation. Different designs will vary depending on flow requirements.
Filter Nozzles are used in liquid/solid separation, and their design and quantity will vary depending on the application and flow requirements.
Our Nozzles ensure a more effective flow of media in chemical reactors and filters
STAINLESS STEEL FILTER NOZZLE
● Wide slot open area
● Easy customisation and pressure loss control
● Long life, resistance to corrosion and high temperature (>135°C)
● Generally used with fixing nut on holed plates
Stainless Steel Filter Nozzles
Discover our range of stainless steel nozzles: this range of products is very useful in many applications that require the high-temperature treatment of water, ensuring an optimum performance of filtration.
Applications
● Rapid and gravity sand filters
● Activated carbon vessels
● Demineralizers/water softeners filters
● Ion exchange columns
● Collectors and distributors
Benefits
● High temperature resistance (>100°C)
● A wider open area
● Very Strong Construction
● Easy slot customisation
● Low Pressure loss
● Long life and lowmaintenance cost
Details
|
Standard diameter
|
φ45/φ53/φ57/φ82 mm
|
|
Slot opening
|
0.1 – 1.0 mm
Mesh18- Mesh150
0.00394"-0.0394" Inches
|
