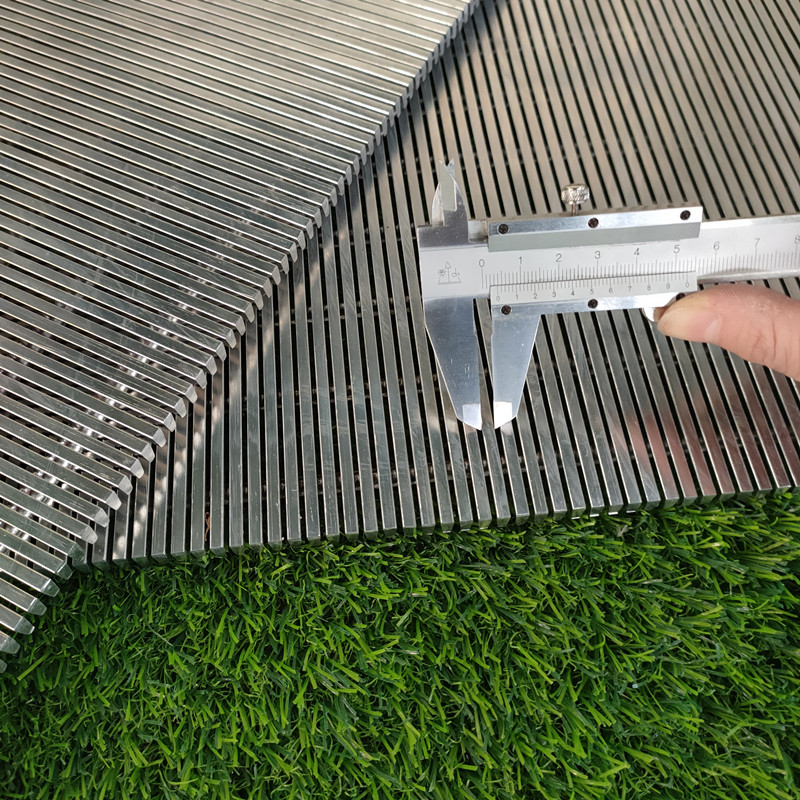

Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar, and rectangular bar. They can suit different machines and can be used in various applications.
The wedge-shaped screen has the characteristics of high welding strength, uniform gap, high precision, corrosion resistance, long service life, and smooth surface. It is exported to many countries around the world and has received unanimous praise from foreign customers.
Panel Screen Standard Specifications:
Slot size (mm):0.02-50mm.
Wire size: 0.75X1.5mm, 1.5X2.5mm, 1X2mm, 1.2X2.3, 2X3mmm, 2X4mm, 3X4mm, 3X5mm, 4.2X6.5, 4X7mm etc.
Open area: up to 60%
Material: SS304,SS316, SS316L,201,2205,2507,C276,Nickel Alloy Wire
Lengths up to 6 meters.
Width up to 6 meters
Features & Benefits:
No-clogging Structure.
High-precision slot space & high slot opening ratio.
High abrasion and corrosion resistance.
Low-pressure drop.
Mechanical strength construction.
Bespoke specification for specific machines & uses.
Diverse apertures & profiles supplied.
Self-cleaning effect.
Smooth & flat surface.
Applications: Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings,Industrial filtration,Food processing,Petrochemical,Mineral and aggregate processing,Water treatment etc.
